303 Servo Positioning 3-in-1 Busbar Processing Machine,
Overview of the 303 Servo Positioning Busbar Machine
The 303 servo positioning CNC busbar processing machine is designed for professional busbar fabrication workshops. With advanced servo positioning technology, it solves the common problem of low accuracy in traditional busbar machines, ensuring every hole, cut, and bend meets strict electrical manufacturing standards. Ideal for processing copper and aluminum busbars used in switchgear, distribution cabinets, and control panels, this machine combines punching, shearing, and bending functions in one compact unit, saving space and improving workflow efficiency.
Key Advantages:
✅ Servo Positioning Control: Ensures precise feeding and consistent workpiece dimensions
✅ 3-in-1 Multi-Function: Punching, shearing, and bending in one machine

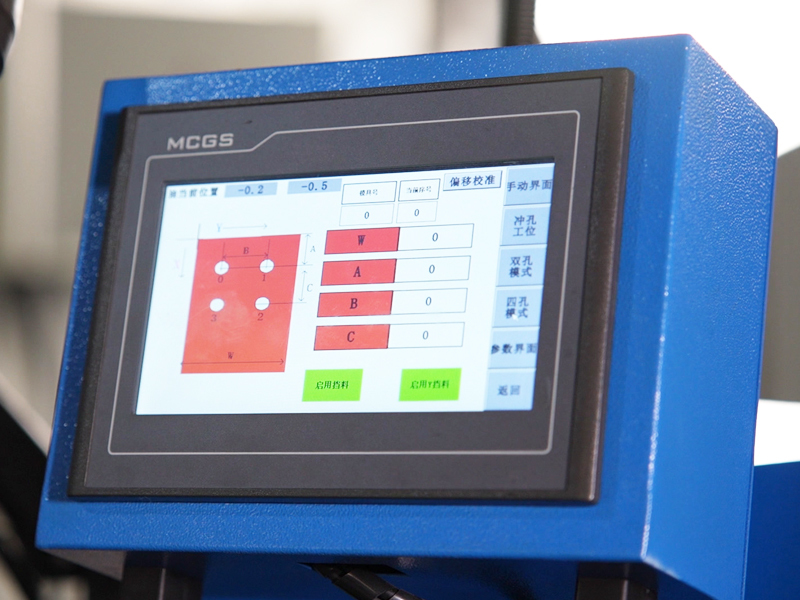

✅ CNC Control Panel: Easy programming for different busbar specifications
✅ High Precision Bending: ±1° angle tolerance for accurate forming
✅ Wide Compatibility: Works with both copper and aluminum busbars
✅ Customizable Molds: Standard molds included, custom molds available for special requirements
✅ Stable Hydraulic System: Reliable performance with long service life
Main Processing Specifications:
|
303 Servo Busbar Machining Machine Processing Parameters |
|
|
Punching Function |
|
|
Maximum punching force (KN) |
350 |
|
Punching processing range: mm |
φ4.3- φ34 |
|
Maximum processing thickness: mm |
15 |
|
Maximum processing width (mm) |
160 |
|
Punching servo positioning length |
0-1000mm |
|
Cut Function |
|
|
Maximum shear force (KN) |
400 |
|
Maximum shear width (mm) |
160 |
|
Maximum shear thickness (mm) |
15 |
|
Cut servo positioning length |
0-1000mm |
|
Bending Function |
|
|
Maximum bending force (KN) |
350 |
|
Maximum bending width (mm) |
160 |
|
Maximum bending thickness (mm) |
15 |
|
Bending servo positioning length |
0-1000mm |
|
Folded bend function |
|
|
Bending width (mm) |
8×80mm |
|
Processing Error |
±1º |
|
outline dimension （mm） |
2000mm×1550mm×1300mm |
|
Main motor power (KW) |
3×4KW |
|
machine weight （T） |
1800g |
|
The 303 servo positioning busbar processing machine comes standard with molds. |
|
|

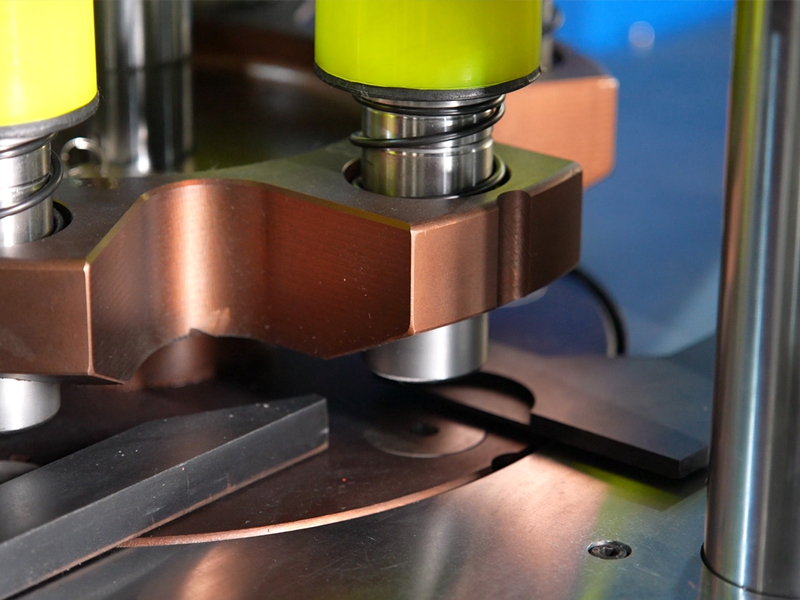

List of molds for busbar processing machines |
φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21 |
|
One set of shear molds |
160 |
|
4 sets of bending molds |
R5, R3, vertical bend, U-shaped bend |
|
1 set of embossing molds |
160×40 |
|
In addition to the aforementioned standard molds, we also offer a full range of alternative molds. Furthermore, we support customizing specialized molds tailored to customers' specific busbar processing requirements. |
|

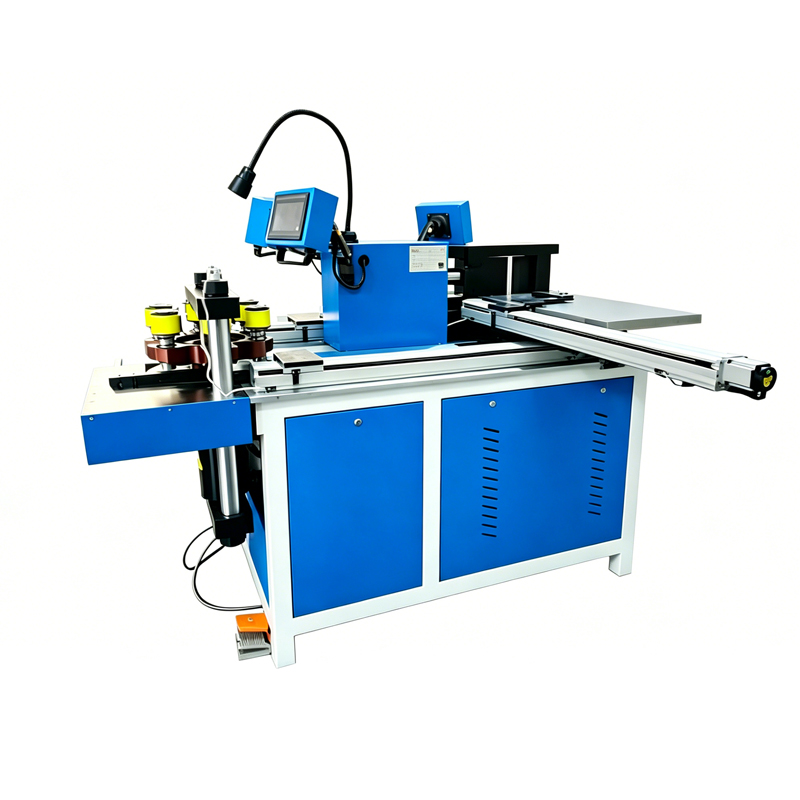

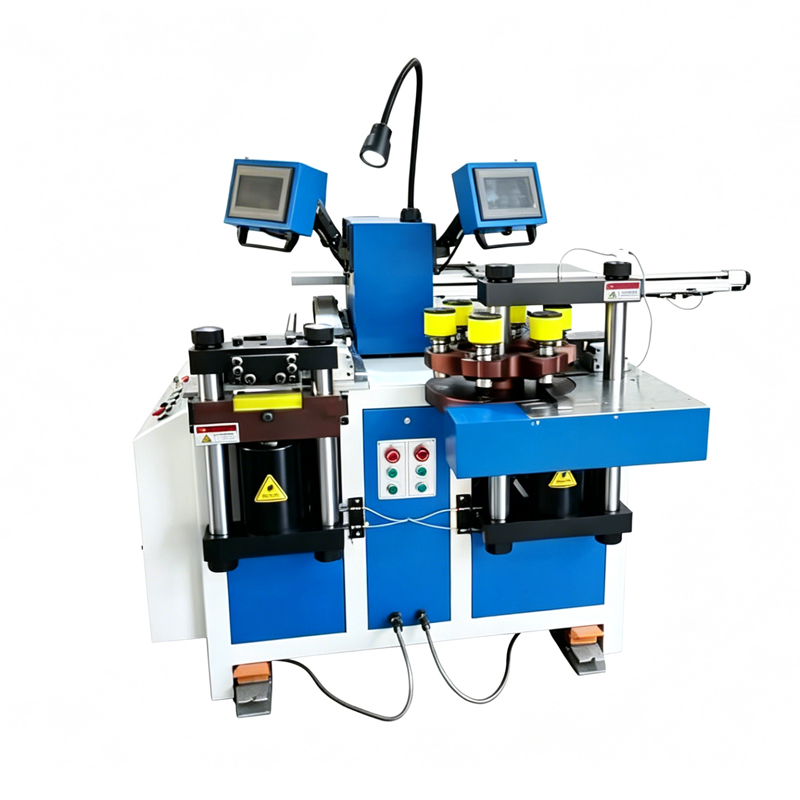

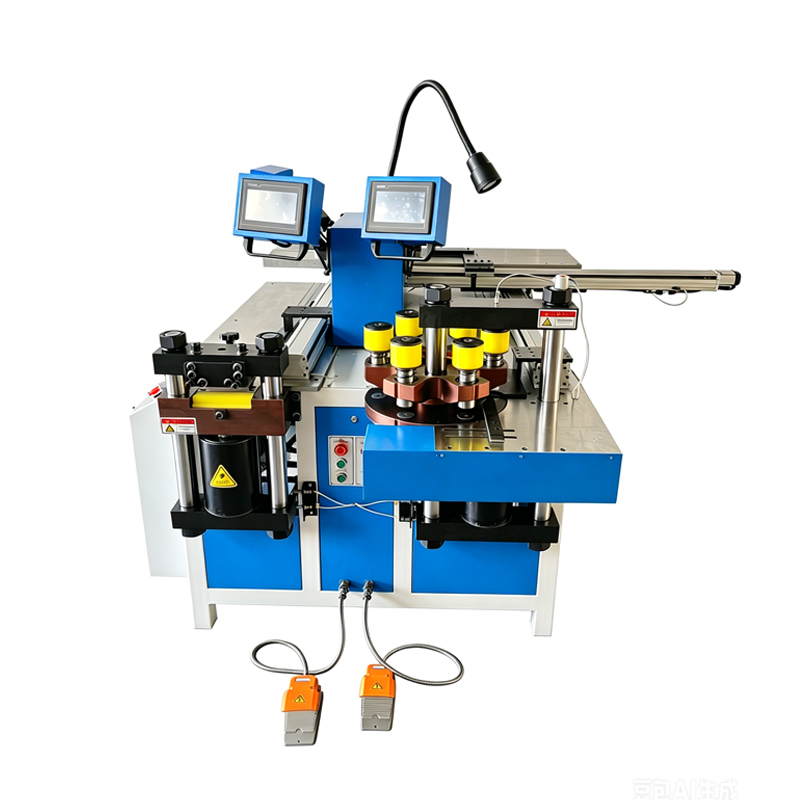

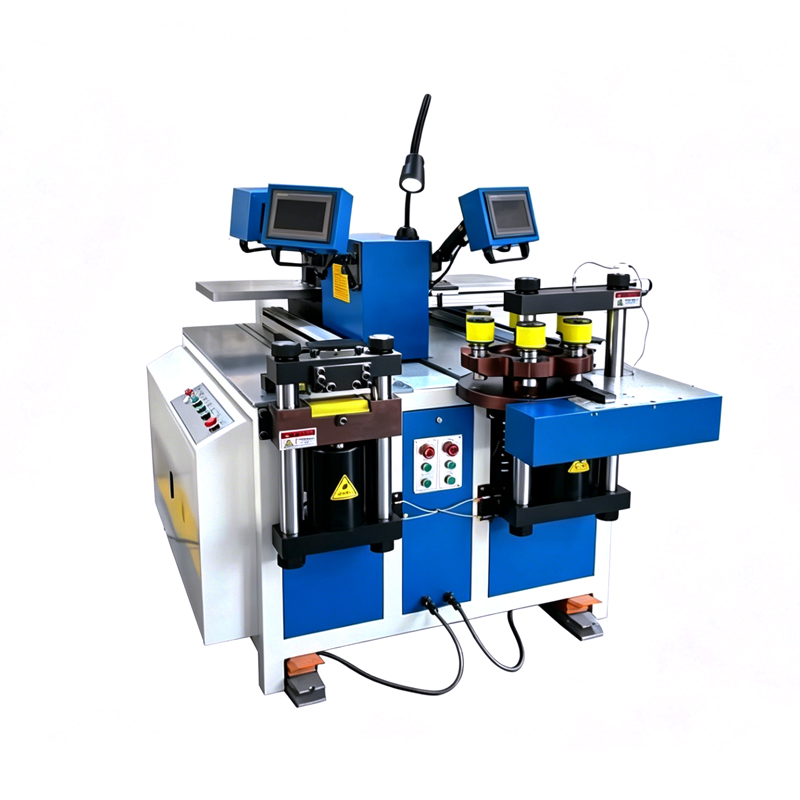

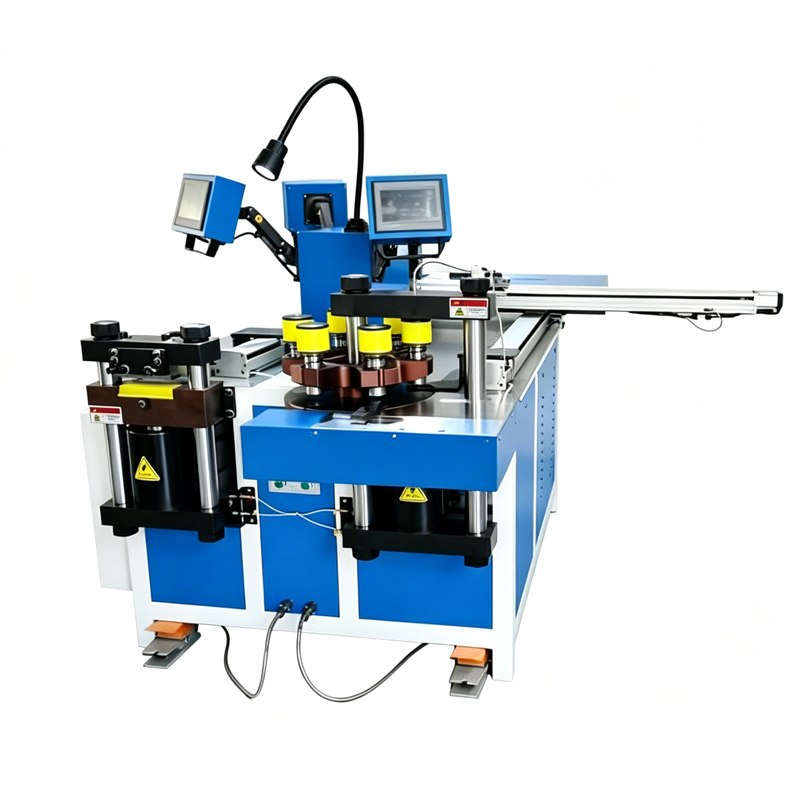

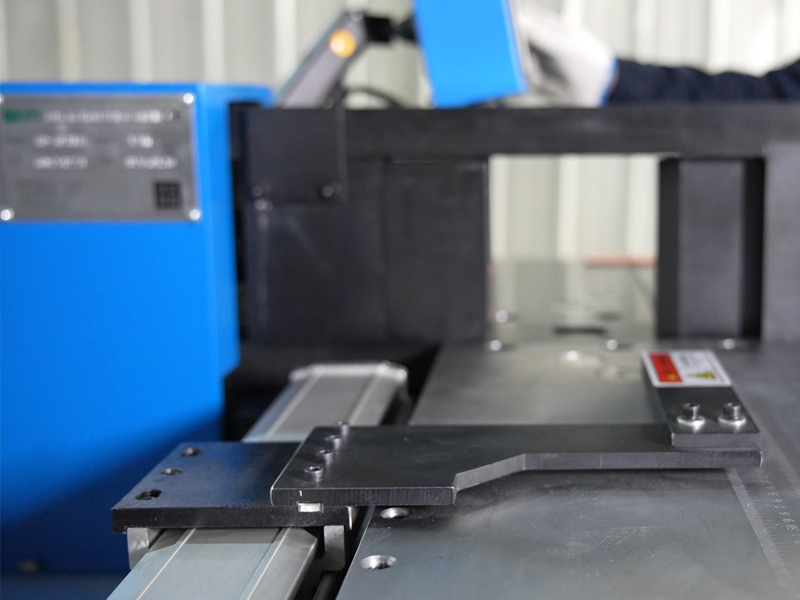

Details of the 303 busbar processing equipment display
