Introduction

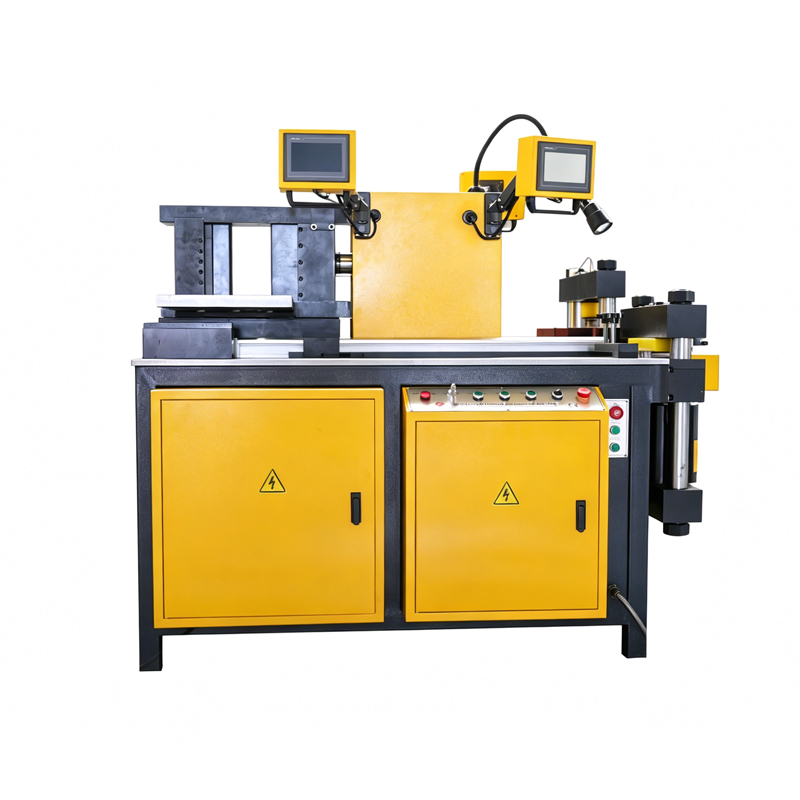

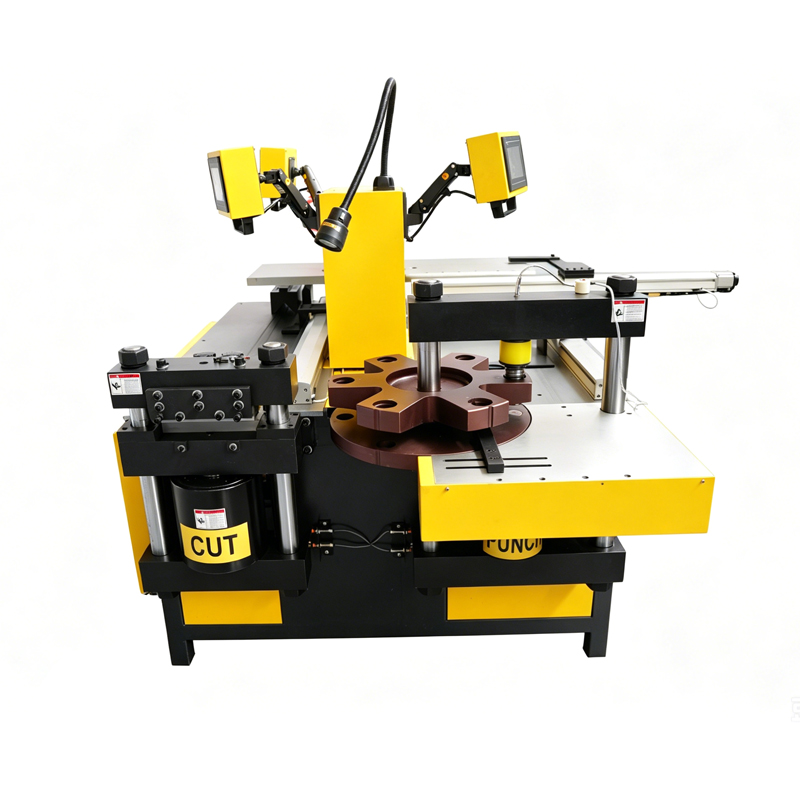

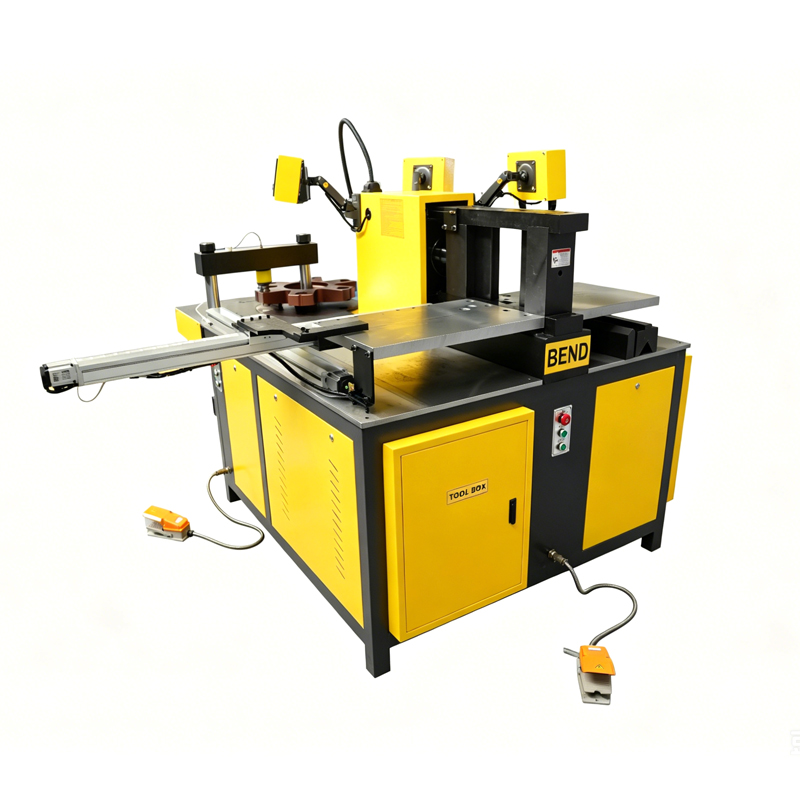

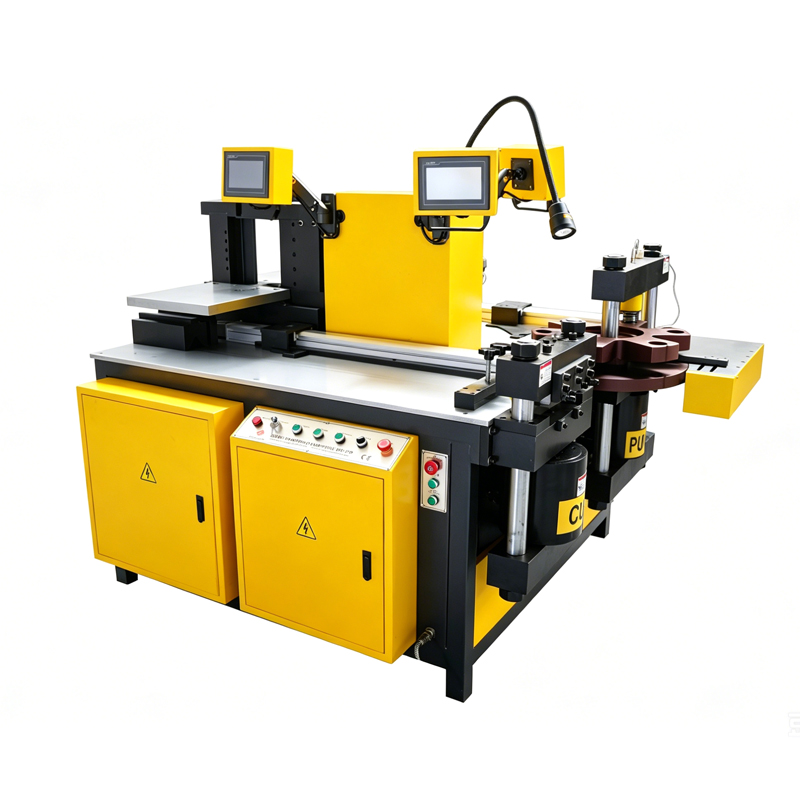

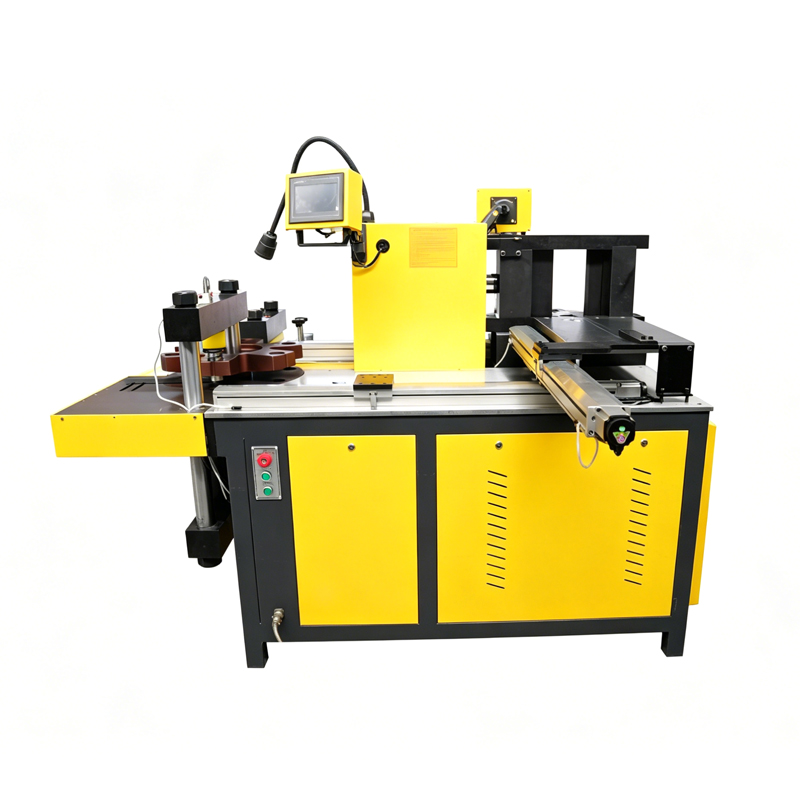

The 3 in 1 Servo CNC Busbar Processing Machine is a professional-grade, multifunctional machine engineered for high-precision copper and aluminum busbar processing. Designed for the electrical power industry, it combines three core functions—punching, shearing, and bending—into one integrated system, streamlining production and reducing operational costs.

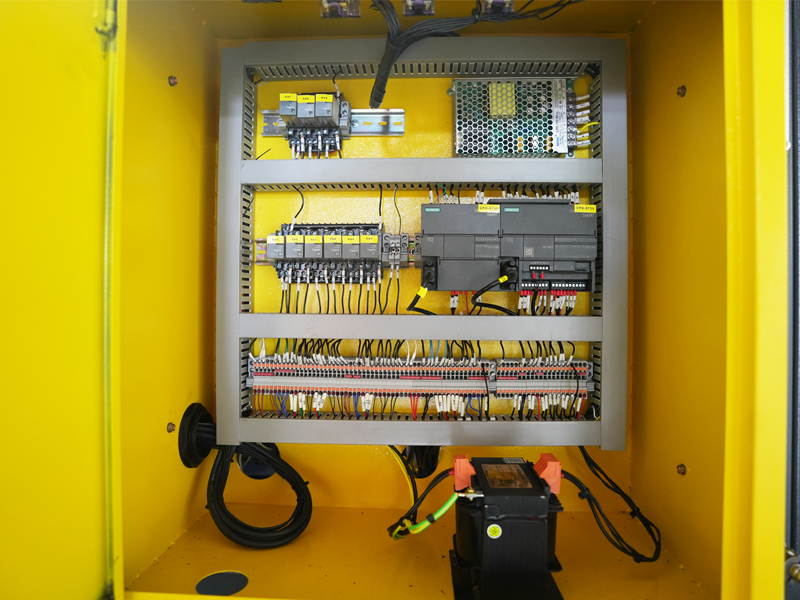

Equipped with advanced servo motors and a CNC control system, the machine ensures automatic positioning and repeatable accuracy, eliminating manual marking and measurement errors. Its three independent working stations can operate simultaneously, significantly boosting productivity for both small-batch and mass production needs.

Key Features

✅ 3-in-1 Multifunction Design: Combines punching, cutting, and bending processes in a single machine

✅ Servo CNC Control: High-precision positioning with ±0.05mm accuracy for consistent results

✅ Three Independent Stations: Simultaneous operation to maximize workflow efficiency

✅ Wide Material Compatibility: Processes copper and aluminum busbars for electrical applications

✅ Robust Hydraulic System: Delivers stable power for heavy-duty busbar processing

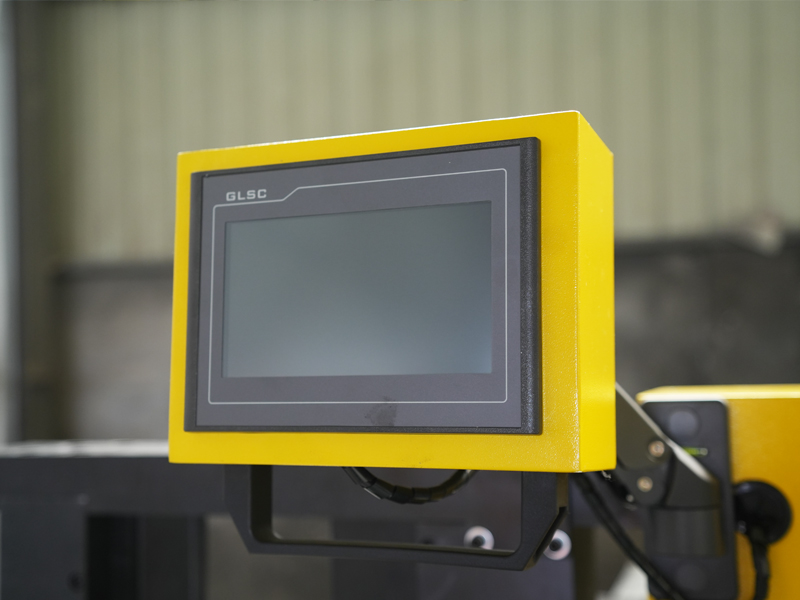

✅ User-Friendly Operation: Intuitive HMI touch screen for easy programming and control

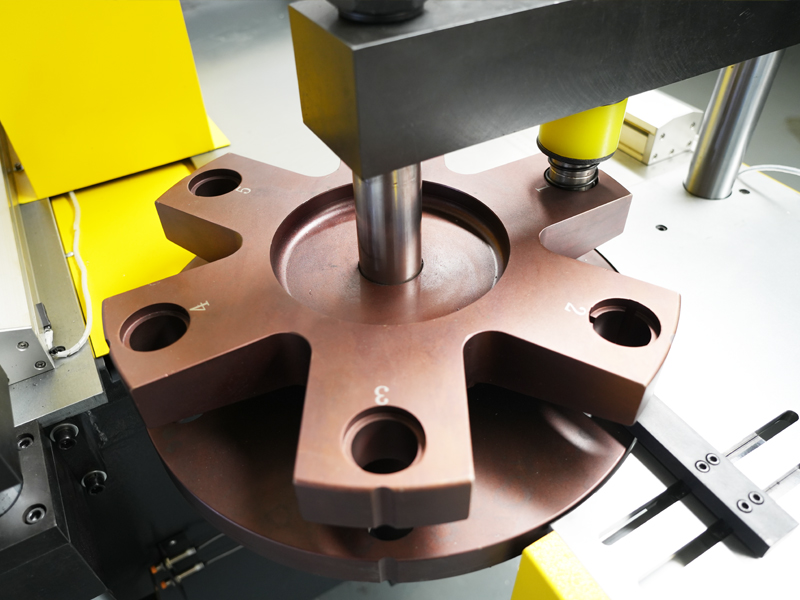

✅ Quick-Change Molds: Supports custom hole sizes and bending angles for versatile applications

Main Processing Specifications:

303 Servo Busbar Machining Machine Processing Parameters

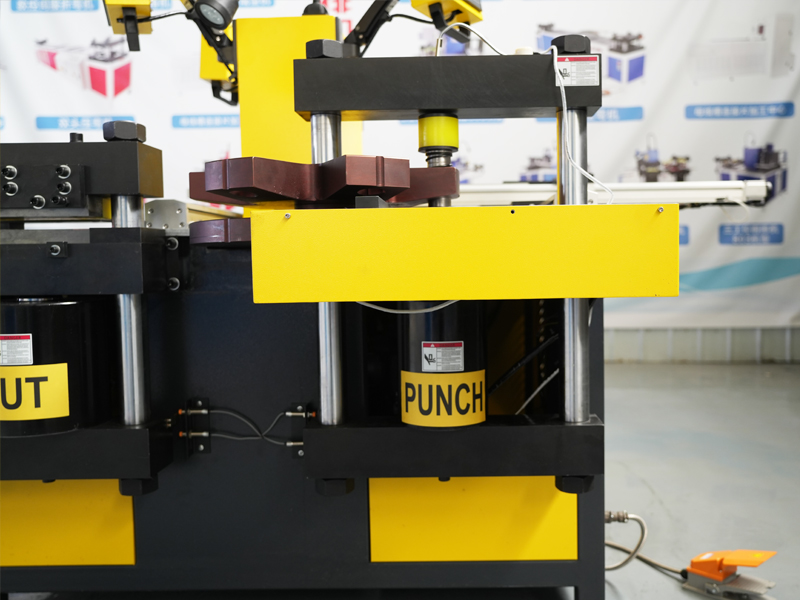

Punching Function
Maximum punching force (KN)	350
Punching processing range: mm	φ4.3- φ34
Maximum processing thickness: mm	15
Maximum processing width (mm)	160
Punching servo positioning length	0-1000mm
Cut Function
Maximum shear force (KN)	400
Maximum shear width (mm)	160
Maximum shear thickness (mm)	15
Cut servo positioning length	0-1000mm
Bending Function
Maximum bending force (KN)	350
Maximum bending width (mm)	160
Maximum bending thickness (mm)	15
Bending servo positioning length	0-1000mm
Folded bend function
Bending width (mm)	8×80mm
Processing Error	±1º
outline dimension （mm）	2000mm×1550mm×1300mm
Main motor power (KW)	3×4KW
machine weight （T）	1800g
The 303 servo positioning busbar processing machine comes standard with molds.
List of molds for busbar processing machines	φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21
One set of shear molds	160
4 sets of bending molds	R5, R3, vertical bend, U-shaped bend
1 set of embossing molds	160×40
In addition to the aforementioned standard molds, we also offer a full range of alternative molds. Furthermore, we support customizing specialized molds tailored to customers' specific busbar processing requirements.
